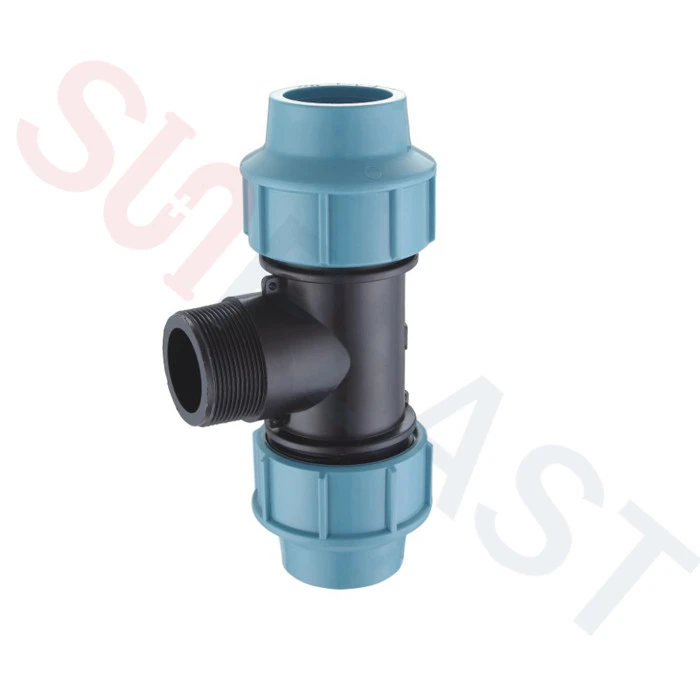

HDPE Compression Txiv Neej Tee
Hauj lwm lawm
Kev tsis
HDPE Compression Fittings, PP compression fittings, HDPE Compression Txiv Tee, Compression Txiv Tee, HDPE Txiv neej Tee, Poly Txiv neej Tee, PP Compression Txiv Neej Tee, HDPE yeeb Txiv Tee
SUNPLAST muab cov kev sib tw ntau cov khoom siv zoo siab thermoplastic compression fittings rau siv nrog ntau cov yeeb nkab khoom hauv ob qho kev ua haujlwm siab thiab qis qis.
A HDPE compression Txiv neej tee yog siv los tee tawm ntawm qhov ntev ntawm metric HDPE yeeb nkab nrog tus poj niam threaded yeeb offtake. Qhov no feem ntau siv kom haum rau poj niam-threaded valve los yog coj mus rhaub ntawm compression haum, rau HDPE raj xa dej. PP Compression Txiv neej tee fittings feem ntau siv rau kev kho dej thiab hydroponics, vim lawv tuaj yeem haum lub qhov dej / cov dej nyob sab ntawm lub qhov loj ntawm lub raj xa hluav taws xob, txhawm rau txhawm rau ntws mus rau qhov dej tawm-qhov dej.
HDPE Txiv neej tee compression tuaj yeem tsim hauv txoj kab uas loj li ntawm 20 * 1/2 "* 20mm txog 110 * 4" * 110mm, nrog rau cov lej siab txog 16 bar. HDPE compression Txiv neej tee fittings yog tsim los ntawm cov khoom zoo PP-B uas tiv taus etching los ntawm cov tshuaj lom neeg ntau, thiab rau UV rays, thiab tsim nyog siv sab nraum zoov.
PP compression Txiv neej tee fittings muaj li ntawm 5 yas accessories:
Kos cim | Feem Lub Npe | Cov khoom siv | Xim |
A | Cap | Zoo siab polypropylene dub co-polymer (PP-B) | Xiav |
B | Clinching nplhaib | POM cob | Dawb |
C | Thaiv thaiv Bush | Zoo siab polypropylene dub co-polymer (PP-B) | Dub |
D | & quot; O" Ntiv nplhaib Gasket | NBR roj hmab | Dub |
E | Lub cev | Zoo siab polypropylene dub co-polymer (PP-B) | Dub |
Lus qhia ntxaws ntxiv raws li hauv qab no:
Khoom | HDPE Compression Txiv neej Tee, Compression Tee, HDPE Txiv neej Tee, Poly Txiv neej Tee, PP Compression Txiv neej Tee, HDPE yeeb Txiv Tee |
Specification | 20 * 1/2 ”* 20mm txog 110 * 4” * 110mm |
Siab kev ntsuas | Ua Haujlwm Siab rau 20 ℃: 20 ~ 63 hli hauv PN16; 75 ~ 110mm hauv PN10 |
Cov khoom siv | Zoo siab polypropylene dub co-polymer (PP-B) |
Xim | Lub cev dub / xiav Cap |
Cov Qauv Tsim Kho | Qhov loj me thiab cov yam ntxwv: ISO 3501/3503/3458/3459. Txhawm rau kom nruab rau ntawm HDPE kav dej: ISO 11922; DIN 8072/8074; Xov (BSP): ISO 7; DIN 2999. |
Kev kuaj muaj | Yog, qauv muaj nyob, tab sis them nqi. |
Cov txheej txheem ntim | Cartons |
MOQ | Sib ceg |
Customized Logo muaj (OEM Kev Pab) | Txog cov khoom me me ntawm kev txiav txim, cov neeg yuav khoom logo tuaj yeem cim rau ntawm fittings los ntawm laser khij lossis ntawv nplaum. Rau kom muaj nuj nqis loj ntawm kev txiav txim, cov neeg lag luam logo tuaj yeem kos rau ntawm cov khoom fittings. |
Ntau lawm lub sijhawm ua | Pawg Tshuag muaj rau qhov ntau thiab tsawg Txog 10 hnub rau 20ft thawv, 20 hnub rau lub thawv 40ft |
Lub sijhawm ua haujlwm lav | 1 xyoos rau kev siv li qub |
Lub sijhawm them | T / T, L / C, DP, Western Union, lossis tuaj yeem sib tham tau |
FOB chaw nres nkoj chaw nres nkoj | Ningbo / Shanghai Tuam Tshoj |
Qhov chaw ntawm lub hauv paus chiv keeb | Ningbo, Suav |
Cov Khoom Muag Khoom Tshwj Xeeb
HDPE / PP compression Txiv neej tee fittingstuaj yeem tsim sizing ntawm 20 * 1/2 "* 20 mm txog 110 * 4" * 110 hli. Qhov loj 20-63mm nrog lub zog ntawm PN16, thiab 75-110mm pa tawm hauv PN10.
Qhov Coob (hli) | Siab Ntsuam Xyuas (bar) | Nyhav (gram / PCS) | Ntim (PCS / CTN) |
20*1/2”*20 | PN16 | 83 | 195 |
20*3/4”*20 | PN16 | 85 | 180 |
20*1”*20 | PN16 | 91 | 180 |
25*1/2”*25 | PN16 | 128 | 120 |
25*3/4”*25 | PN16 | 130 | 120 |
25*1”*25 | PN16 | 132 | 104 |
32*1/2”*32 | PN16 | 199 | 85 |
32*3/4”*32 | PN16 | 206 | 85 |
32*1”*32 | PN16 | 215 | 85 |
32*1-1/4”*32 | PN16 | 206 | 80 |
40*1”*40 | PN16 | 368 | 40 |
40*1-1/4”*40 | PN16 | 379 | 40 |
40*1-1/2”*40 | PN16 | 385 | 40 |
50*1”*50 | PN16 | 592 | 26 |
50*1-1/4”*50 | PN16 | 592 | 26 |
50*1-1/2”*50 | PN16 | 595 | 26 |
50*2”*50 | PN16 | 609 | 26 |
63*1-1/4”*63 | PN16 | 1032 | 14 |
63*1-1/2”*63 | PN16 | 1029 | 14 |
63*2”*63 | PN16 | 1028 | 14 |
75*2”*75 | PN10 | 1256 | 9 |
75*2-1/2”*75 | PN10 | 1232 | 9 |
75*3”*75 | PN10 | 1245 | 9 |
90*2-1/2”*90 | PN10 | 1868 | 5 |
90*3”*90 | PN10 | 1819 | 4 |
90*4”*90 | PN10 | 1847 | 4 |
110*2-1/2”*110 | PN10 | 4144 | 3 |
110*3”*110 | PN10 | 3243 | 3 |
110*4”*110 | PN10 | 3147 | 3 |
Cov txiaj ntsig ntawm PP Compression fittings
Los ntawm kev sib piv ntawm lwm cov fittings, poly yeeb nkab compression fittings muab cov txiaj ntsig ntawm lub cev thiab kev ua tau zoo:
Los ntawm kev sib piv ntawm lwm HDPE fittings, HDPE electrofusion fittings repute ntau cov txiaj ntsig:
* Kev sib sau ceev ceev& disassemble, Yooj yim installation ：Tsis muaj vuam, Tsis muaj cov cuab yeej tshwj xeeb yuav tsum tau, yooj yim sib dhos& disassembling, cov uas ua rau PP compression fittings ntau dua& nrov dua siv, tshwj xeeb tshaj yog rau cov dej tso tawm.
* txo tus nqi plahaum& tus nqi zog:HDPE compression fittings yog fittings siv txoj kev siv tshuab sib txuas, ceev ceev nruab& tsawg tus neeg ua hauj lwm nruab yuav tsum.
* Zoo meej watertight:Tus tsim tshwj xeeb& NBR "O" ntiv nplhaib xyuas kom Poly compression fittings lub ntsej muag dej zoo rau kev siv sijhawm ntev.
Cov neeg thov ntawm HDPE Compression fittings
Qhov ntau ntawm poly yeeb nkab compression fittings yog siv rau kev kub ceev polyethylene kav nplooj siab rau cov kua dej ua kom rov zoo. Lawv tuaj yeem siv rau hauv kev siv dej, kev haus dej, cov kav dej thiab cov kab siab siab rau cov dej, roj thiab lwm yam kua, thiab ntau yam khoom haum rau ntau yam ntawm kev cog ntoo tsim kev cai.
• Chaw Tso Dej: Thaj Tsam Chaw, Hauv Nroog, chaw ua si nawv, ntaus pob golf.
• Irrigation: Ua liaj / teb, cog qoob loo, vaj txiv hmab.
• Kev Lag Luam: Kev Sib Tham Cua.
Packing& Kev Thauj Khoom
Kev ua haujlwm raws li chaw tsim tshuaj paus ib puag ncig& tus neeg xa khoom hauv Suav teb, peb cov HDPE fittings tau xa tawm mus rau ntau tshaj 40 lub teb chaws thoob plaws ntiaj teb. Peb tau tsim kom muaj kev sib raug zoo nrog peb cov neeg siv khoom ob leeg hauv peb txoj kev ua lag luam& kev lag luam kev xa tawm.
SUNPLAST tau cog lus los muab cov kev daws teeb meem zoo tshaj plaws ntawm HDPE yeeb fittings rau txhua tus neeg muas zaub thoob ntiaj teb, thiab peb tos ntsoov yuav los ua koj tus khub txhim khu kev qha rau HDPE yeeb fittings.
Tiv Tauj Peb
Yog tias koj muaj kev xav tau ntawm PP compression fittings, lossis cov lus nug ntawm peb cov fittings, thov hu rau peb dawb do. SUNPLAST muaj cov neeg ua haujlwm tau kawm zoo uas muaj los daws koj cov kev xav tau thiab muab kev pab txhawb kev rau txhua lub sijhawm thaum xav tau.
Cim npe nrov: HDPE compression txiv neej xov tee, Tuam Tshoj, cov chaw muag khoom, manufacturers, hoobkas, yuav, nqi, ua nyob rau hauv Suav teb
